Cosmic Ray Radiation Is Dangerous and Getting Worse As Sun Is Often Spotless

“The radiation environment is worsening more rapidly than previously estimated. Over the last decade, the solar wind has exhibited low densities and magnetic field strengths, representing anomalous states that have never been observed during the Space Age.”

– Nathan Schwadron, Ph.D., Physicist, Univ. of New Hampshire

Eight months ago on June 26, 2017, our Sun had only one small sunspot region. In 2017, the sun was completely blank 25% of the year as that Solar Cycle 24 was historically weak with the lowest number of sunspots since the Solar Cycle 14 of 1906, 112 years ago. Image by NASA.
Eight months ago on June 26, 2017, our Sun had only one small sunspot region. In 2017, the sun was completely blank 25% of the year as that Solar Cycle 24 was historically weak with the lowest number of sunspots since the Solar Cycle 14 of 1906, 112 years ago. Image by NASA.

March 8, 2018 Durham, New Hampshire – In mid-February 2018, solar activity was as low as 2007 levels, which was one year before that solar minimum began. That’s why solar physicists now project that the Solar Cycle 24 minimum leading up to Solar Cycle 25 will begin a year from now in the spring of 2019. Some solar physicists have even placed bets about whether low energy Solar Cycle 24 will keep extending into Solar Cycles 25 to 26 ending up in a Maunder Minimum of 1645 to 1715, when our Sun was blank without sunspots most of the time and coincided with a Little Ice Age.

Why would lack of sunspots cause Earth to get colder? Sunspots result from magnetic activity inside the Sun. Paradoxically, as spots on the Sun get darker and cooler, the areas around sunspots brighten up. So the more sunspots, the more solar energy reaches Earth. But why would we have a Maunder Minimum now in the 21st Century?

A couple of years ago in the summer of 2015, the Royal Astronomical Society had Professor Valentina Zharkova speak about her computer solar cycle model that analyzes magnetic wave components in our Sun. She discovered the waves appear in pairs at two different layers of the Sun’s interior.

She explained, “They both have a frequency of approximately 11 years, although this frequency is slightly different, and they are offset in time. Over the cycle, the waves fluctuate between the northern and southern hemispheres of the Sun. When you combine both waves together and compare to real data for the current solar cycle, we found that our predictions showed an accuracy of 97%.”

Projecting their data to the next Solar Cycle 25, which is supposed to peak in 2022, the two waves will become exactly out of sync, countering each other, and that is expected to significantly reduce sunspots and solar activity.

Then the projection for Solar Cycle 26 is that “the two waves will exactly mirror each other, peaking at the same time, but in opposite hemispheres of the Sun. Their interaction will be disruptive, or they will nearly cancel each other out. We predict that this will lead to the properties of a Maunder Minimum. When there is full phase separation, we have the conditions last seen only during the Maunder minimum some 370 years ago.”

Our Sun Was Blank 25% of 2017 — Dangerous Increase in Cosmic Rays

In 2017, the sun was completely blank 25% of the year as that Solar Cycle 24 was historically weak with probably the lowest number of sunspots since 112 years ago in the Solar Cycle 14 of 1906. Current 2018 computer models project that from the upcoming Solar Cycle 24 minimum out to Solar Cycle 26 expected to start around 2030, the Sun’s solar output could be even weaker, taking the Sun down to a level of weak solar output not seen since the cold years of the Dalton Minimum in 1790 to 1830, and maybe even the Maunder Minimum that European scientists linked to the Little Ice Age. Others have argued that the huge 1815 eruption of Mount Tambora in Indonesia might have caused Earth cooling.

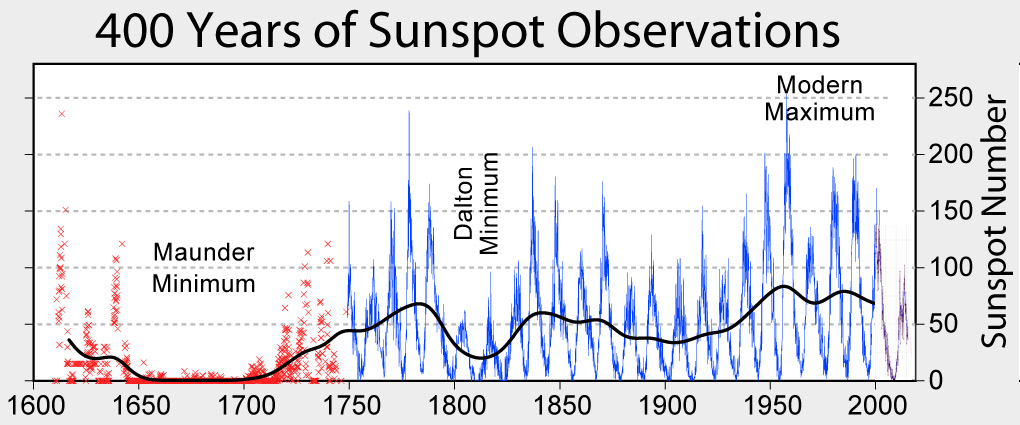

Graph from 1600 to 2000+ showing 400-year history of sunspot numbers, ranging on the left from the Maunder Minimum of 1645 to 1715, followed later in 1790 to 183 by the Dalton Minimum — and onward to our modern maximums and possible deep minimum by 2030. Most currently, 2017 was a low sunspot year and there are questions going into the next solar cycles, if more blank suns will persist into another Maunder Minimum period that will also mean increasing cosmic ray radiation reaching Earth. Image by NASA.
Graph from 1600 to 2000+ showing 400-year history of sunspot numbers, ranging on the left from the Maunder Minimum of 1645 to 1715, followed later in 1790 to 183 by the Dalton Minimum — and onward to our modern maximums and possible deep minimum by 2030. Most currently, 2017 was a low sunspot year and there are questions going into the next solar cycles, if more blank suns will persist into another Maunder Minimum period that will also mean increasing cosmic ray radiation reaching Earth. Image by NASA.
Weakening Magnetic Fields Means More Dangerous Cosmic Rays Reach Earth

Last month on February 22nd, 2018, the Space Weather Journal published an “Update on the worsening particle radiation environment now observed and implications for future human deep-space exploration.” The lead author is Nathan Schwadron, Ph.D., a physicist in the University of New Hampshire Space Science Center who also does work for the Solar System Exploration Research Virtual Institute at NASA Ames Research Center in Moffett Field, California. He warns in his new research that cosmic rays in the Earth-Moon system have been peaking at levels never seen before in the modern Space Age. The increasing cosmic rays can hurt astronauts.

Professor Schwadron writes: “Over the last decade, the solar wind has exhibited low densities and magnetic field strengths, representing anomalous states that have never been observed during the Space Age. As a result of this remarkably weak solar activity, we have also observed the highest fluxes of cosmic rays.”

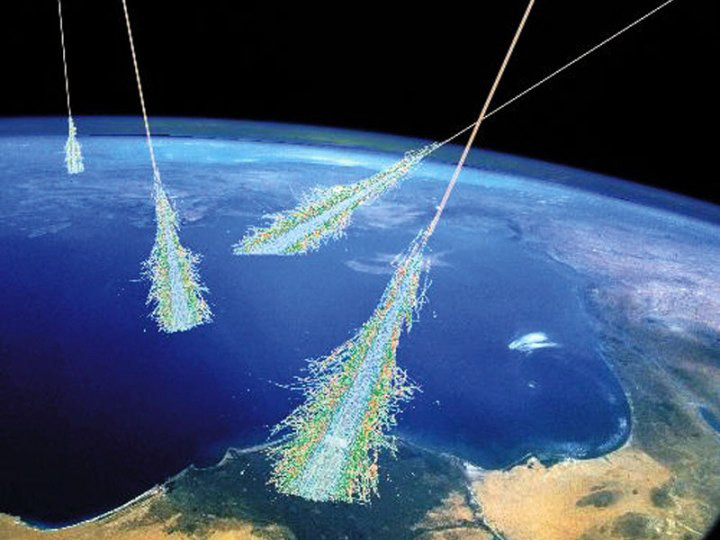

NASA illustration of cosmic rays hitting Earth. High energy cosmic rays from outer space are atomic nuclei produced by exploding stars throughout our universe. Low energy cosmic rays come from our own Sun. Cosmic rays can penetrate through most everything from airliners to astronaut suits and even trigger lightning in Earth's skies. The problem now is that if the Sun Earth system is headed to low solar magnetic fields in a Maunder Minimum-like cycle, then cosmic ray intensity will continue to climb. That's dangerous for Earth life and aerial craft, especially spaceships headed for the Moon and Mars.
NASA illustration of cosmic rays hitting Earth. High energy cosmic rays from outer space are atomic nuclei produced by exploding stars throughout our universe. Low energy cosmic rays come from our own Sun. Cosmic rays can penetrate through most everything from airliners to astronaut suits and even trigger lightning in Earth’s skies. The problem now is that if the Sun Earth system is headed to low solar magnetic fields in a Maunder Minimum-like cycle, then cosmic ray intensity will continue to climb. That’s dangerous for Earth life and aerial craft, especially spaceships headed for the Moon and Mars.

Professor Schwadron’s concern is that as solar activity and magnetic fields get weaker and continue to weaken into the 2030s, there will be more and more cosmic rays reaching Earth. Cosmic rays are generated by supernova explosions of stars that burst out into the universe traveling near the speed of light. Physicists say cosmic rays are the most energetic particles in the cosmos. Their high energy allows these particles to penetrate nearly every material known to humankind, including astronaut suits and space craft shielding. When cosmic rays penetrate shielding, secondary particles are produced that can damage organs and lead to cancer.

NASA has limits about how much cosmic radiation is safe for astronauts. But with the declining sunspots as we move toward Solar Cycle Minimum 24, if solar activity continues to decrease, Prof. Schwadron and his colleagues report that a leading computer model of solar activity to predict how bad cosmic rays would become during the next Solar Cycle 24 Minimum, now expected in 2019-2020, suggests a 20% increase of dose rates from one solar minimum to the next. In fact, we now see that actual dose rates observed in the last 4 years exceed the predictions by ~ 10%, showing that the radiation environment is worsening even more rapidly than we expected.”

Protecting astronauts from cosmic radiation is one of the key challenges facing future missions to Mars. NASA is even considering the use of drugs on Martian crews that will alter the DNA code of those people. The goal would be to alter those human bodies in such a way that the altered DNA would repair any damage sustained from cosmic rays that could cause cancer and other diseases.

NASA Spaceweather reports: “Cosmic rays also penetrate commercial airlines, dosing passengers and flight crews so much that pilots are classified by the International Commission on Radiological Protection as occupational radiation workers. Some research shows that cosmic rays can seed clouds and trigger lightning, potentially altering weather and climate. Furthermore, there are studies that link cosmic rays to cardiac arrhythmias in the general population.”

Bottom line: if our Sun is headed for a lot more blank days without sunspots, for certain cosmic rays will intensify even more in the years ahead as it evolves toward what could be the deepest Solar Minimum in more than a century.

Preceding Solar Cycle 23: Eleven years in the life of the Sun spanning most of solar cycle 23 as it progressed from solar minimum to maximum conditions and back to minimum (upper right), seen as a collage of ten full-disk images of the lower corona. Credit: ESA, NASA, SoHO.
Preceding Solar Cycle 23: Eleven years in the life of the Sun spanning most of solar cycle 23 as it progressed from solar minimum to maximum conditions and back to minimum (upper right), seen as a collage of ten full-disk images of the lower corona. Credit: ESA, NASA, SoHO.

Also see:

09-02-2015 – Is Our Sun “Going to Sleep” in 2030?


More Information:


Websites:

“Update on the worsening particle radiation environment observed by CRaTER and implications for future human deep-space exploration,” February 22, 2018, Space Weather AGU Journal:
http://onlinelibrary.wiley.com/doi/10.1002/2017SW001803/abstract

The Worsening Cosmic Ray Situation, March 5, 2018, by Tony Phillips, Ph.D.: https://spaceweatherarchive.com/2018/03/05/the-worsening-cosmic-ray-situation/

The Solar Cycle © 2015 by David Hathaway, Solar Physicist, NASA Ames Research Center, Moffett Field, Calif.:
https://arxiv.org/pdf/1502.07020.pdf
